IUSE: High-performance, single-channel ultra­sound electronics for industrial applications

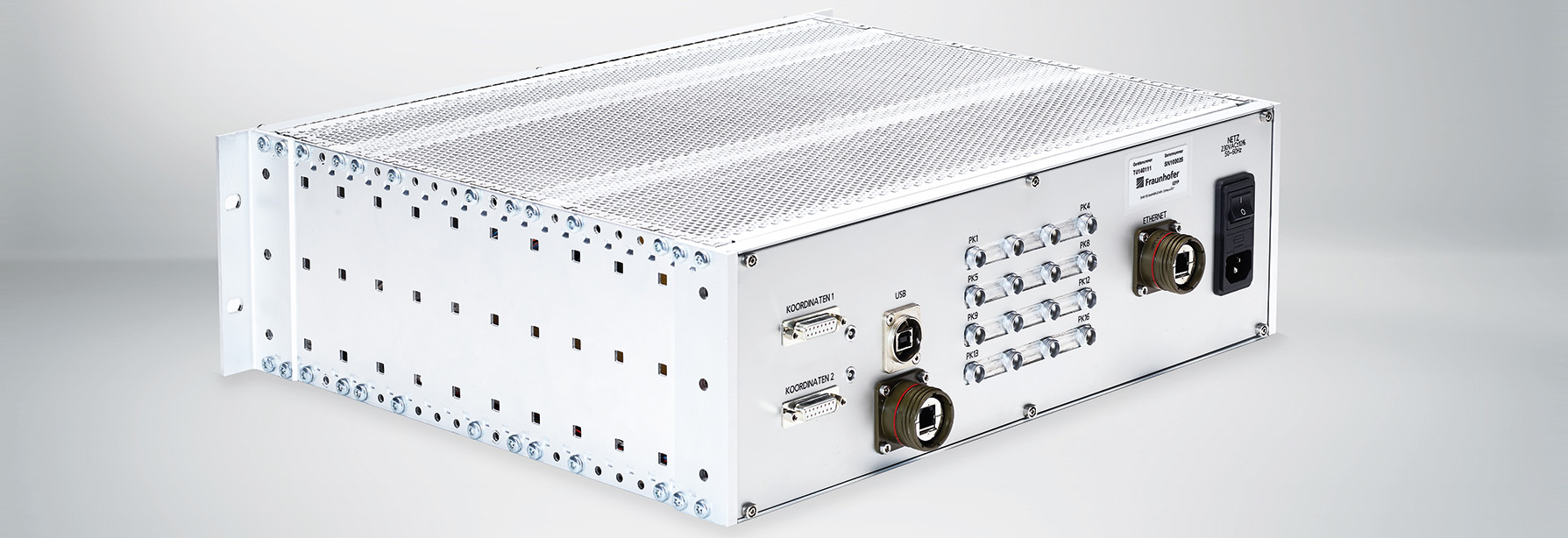

As a further development of the UNIUS platform the inspection electronics IUSE specially zeroes in on industrial applications. Besides the extension to 16 multiplexed transmitter/receiver channels a ­modular interface concept is provided which allows the application-specific selection of the host ­interface from Ethernet, USB 3.0 and a proprietary, optical technique. Moreover, IUSE by default ­provides ­established algorithms for pre-compression of measurement data at high cycle repetition-­rates and the option for a position-dependent gain correction when operated in conjunction with a coordinate trigger unit.


Technical data:

General

• Power supply 19‘‘ chassis: 230 VAC
• Variant IUSE frontend: 24 VDC – 78 VDC or Power over Ethernet (PoE)


Data sampling

• ADC: 14 Bit at a sampling rate of 240 MSamples/s
• 128 kSamples sampling depth
• Up to 511 averages
• Echo-start function
• Gate processing, up to 4 gates (overlap is possible)
• HF data, A-scan, or compressed TD data


Receiver

• 90 dB dynamic range
• 23 MHz analog bandwidth
• 16:1 multiplexed receiver channel enables connection of up to 16 probes
• Up to 8 analog input filters (5 onboard + 3 pluggable)
• Run-time-dependent gain correction TGC (256 sampling points, 90 dB dynamics)
• Position-dependent gain correction PGC (128 sampling points, 90 dB dynamics)


Transmitter

• Onboard transmitter topology: Square pulse, negative
• Transmission voltage 200 V at 50 Ω
• Shot repetition rate up to 10 kHz


Ports

• Flexibly configurable I/O ports (e.g., for control of external components)
• 128 MByte internal data cache for rapid measurements
• Communication interface, standard Ethernet 1 Gbit/s or 100 Mbit/s, alternatively USB 3.0 or proprietary optical interface


Software support

• Inclusion in different frameworks (C++, C#, LabView, etc.) via integration toolkit (ITK)


Applications

IUSE is optimized for industrial use in automated inspection applications that request a high number of single channels at concurrently high repetition rate of the inspection cycle. The sturdy front­end design complements the default 19“ chassis variant with a PoE-ready solution for near-­sensor assembly. The integration toolkit simplifies embedding IUSE into customer-specific inspection systems by support of established software frameworks (C++, C#, LabView).





Flyer “IUSE“
