Fraunhofer Institute for Nondestructive Testing IZFP The business unit "railway" is characterized by the world-wide upgrading of the highspeed network at concurrently ingreased maintenance standards. Thus, major activities of the business unit concern the development and marketing of automated inspection and monitoring systems for wheel set components in the frame of the light and heavy maintenance of railway operators.
Railway
Technologies for rail-bound traffic and transport in the 21st century
© Marco2811 - Fotolia
Railway
Contact
rail[at]izfp.fraunhofer.de
Tabbed contents
Application Examples
UER III: System for Ultrasonic Stress Measurement in the Rim of Railroad Wheels
UER III: System for ultrasonic stress measurement in the rim of railroad wheels
Fields of application: Heavy/operational maintenance
More than 20 years of experience in industrial application
Frontend solution to minimize electromagnetic interferences
Development and design of the mobile version in 2018
Comprehensive service and flexible technical support
Selection of long-term available hardware components
Compatible with modern IT infrastructure in workshop environment
Comfortable handling, easy to learn and reliable
Identical cross-platform inspection software for all variants

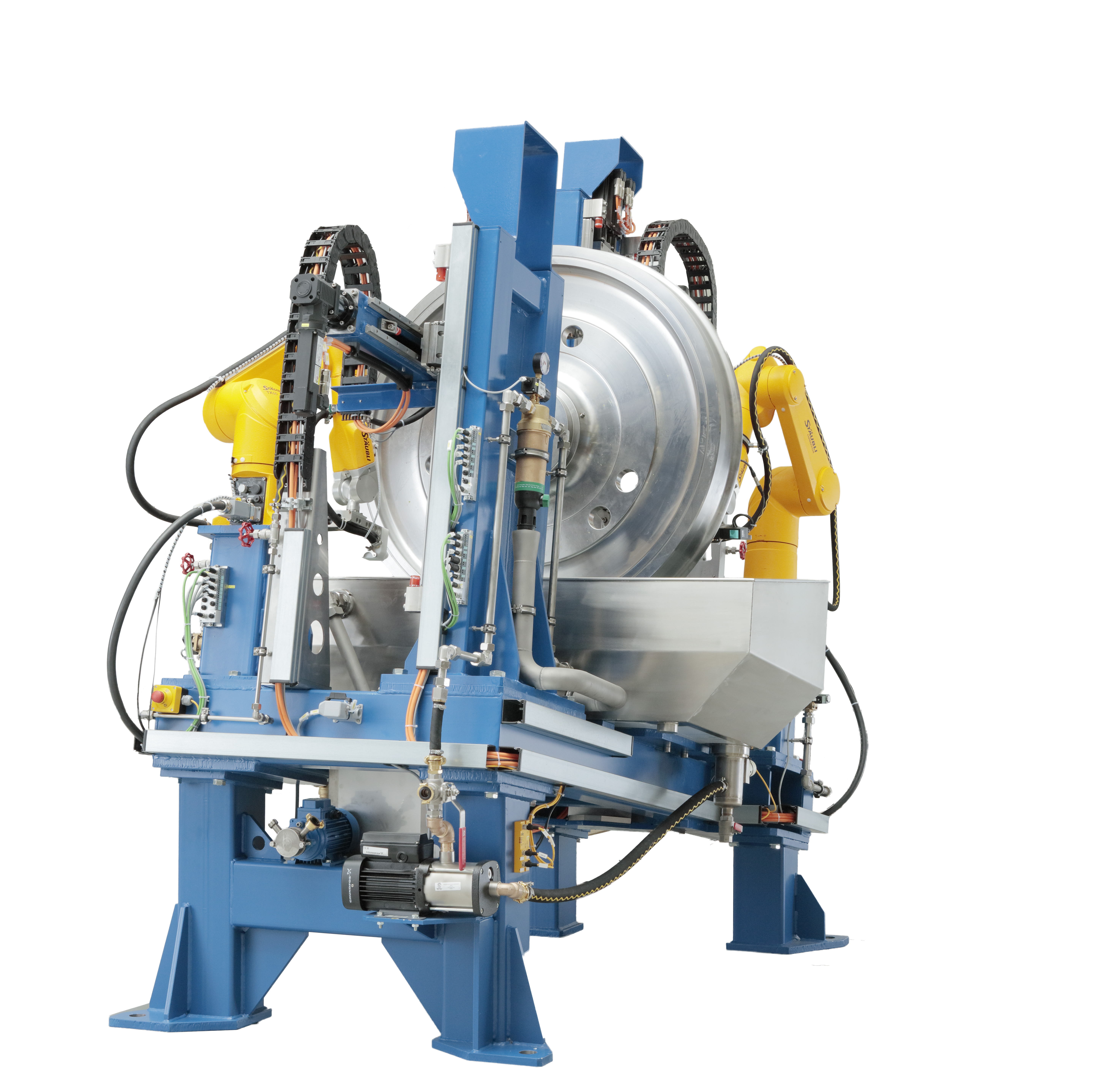

Hardware and Software Components of the Ultrasonic Inspection System RAWIS: Production-Integrated Inspection of Railroad Wheels
RAWIS Inspection System
High resolution at concurrently high inspection velocity by use of phased array technique and hardware-near data processing
Fully automated hundred percent inspection of wheel rim and wheel hub within a single turn of the wheel
Use of smart evaluation algorithms for automated assessment of the inspection results
Modular system design for use in maintenance inspections at low modification time and effort
AUROPA: Automated Wheel Tread Inspection System
Inspection of the tread condition of an entire train in roll-over operation
Application of EMAT probes immediately in the track
Couplant-free ultrasound inspection enabling measurements even at low ambient temperatures
Increased measurement reliability by redundant probes
Cost-effective realization of the inspections including automated recording of the inspection results in a database

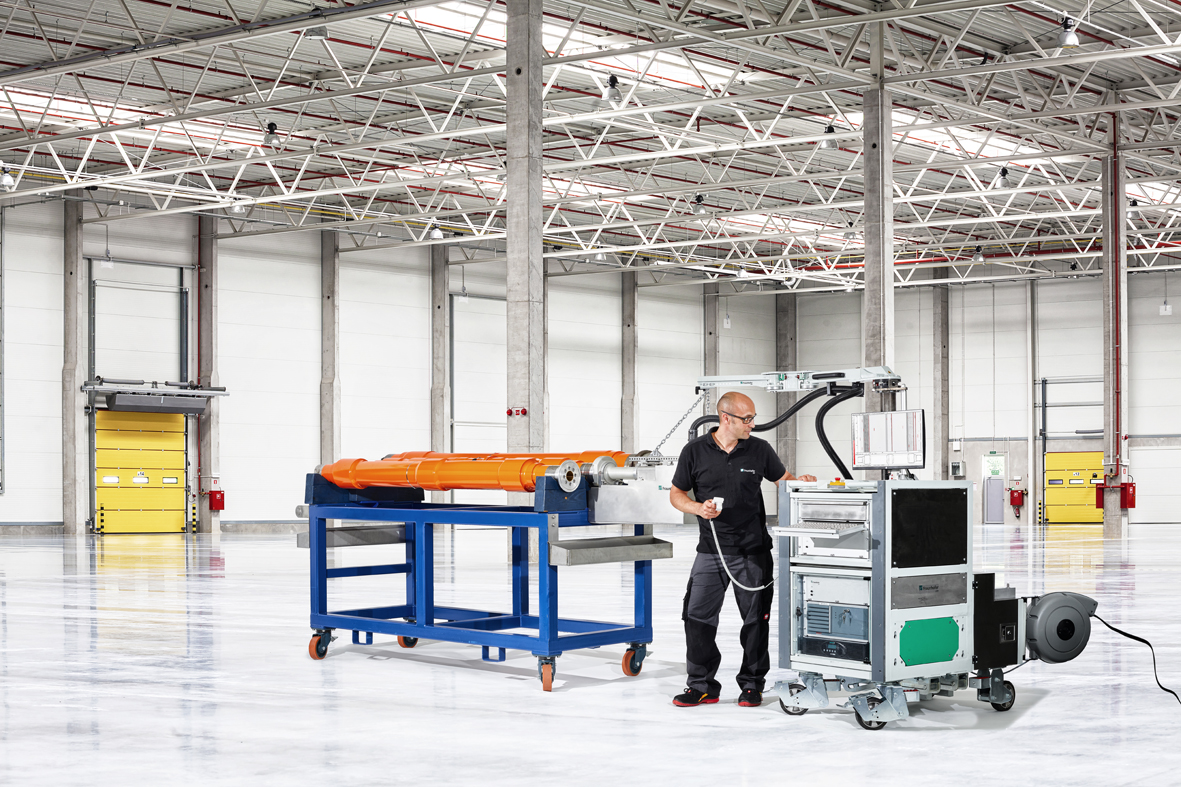

Mobile Inspection System for Hollow Rail Axles
Mobile Ultrasonic Inspection System
Rotating ultrasound test probe
Suitable for 30-90 mm bore diameters
Hand-operated, compact test cart
Mechanized inspection system provides visual display of test results

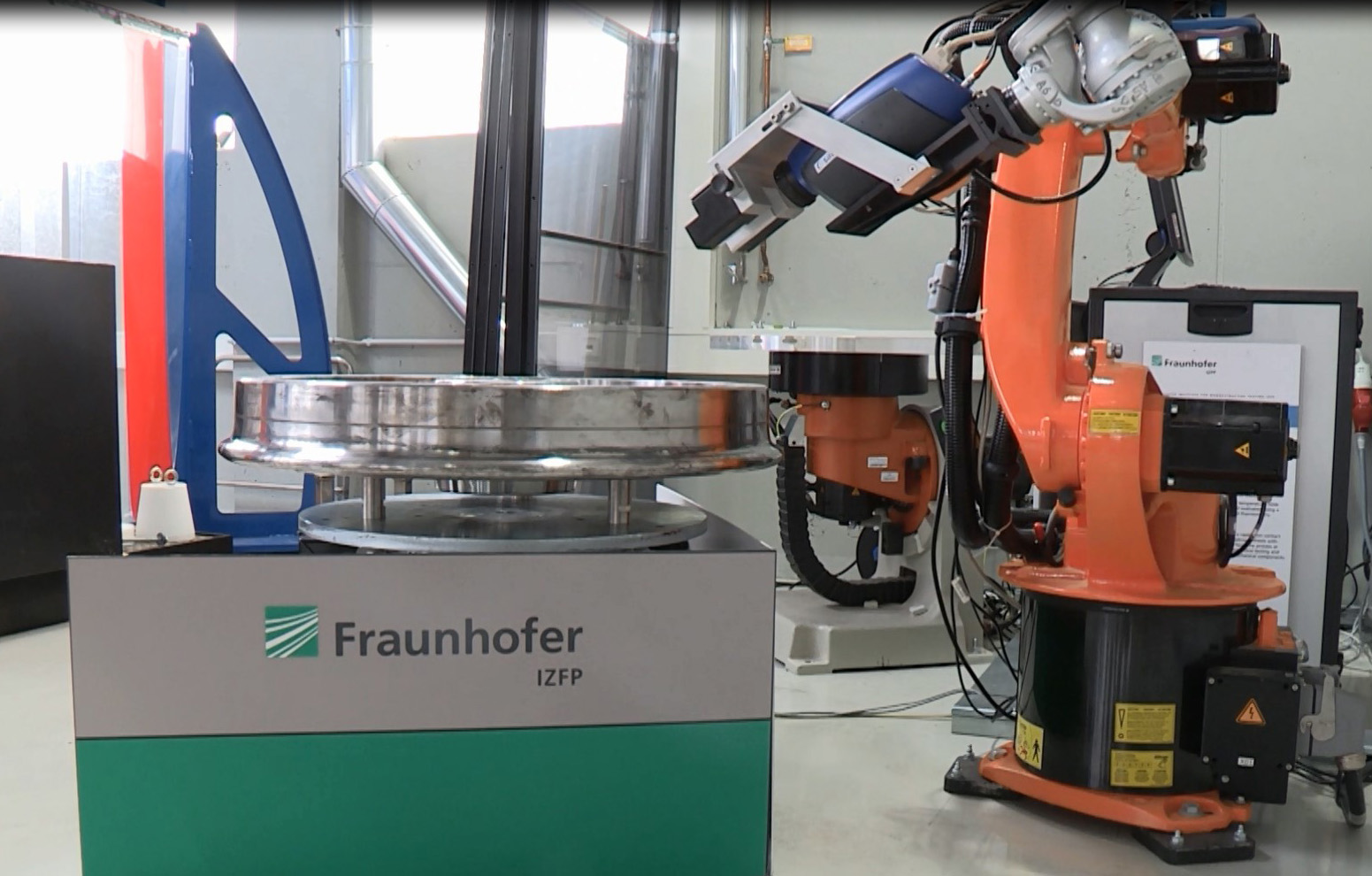

Automated Thermography Inspection System for Railway Wheels
Robot-assisted surface crack inspection in railroad wheels of high-speed trains by inductively excited thermography
Substitution of conventional magnetic particle inspection: Large-scale, fast, and imaging method
Nondestructive and automatable, can be integrated into existing processes
Objective/automatic defect detection even of covered (near-surface) defects by intelligent assessment algorithms
Contactless and couplant-free
Quantitative crack depth assessment
